Zhejiang Jiangshan Hengli Electrical Co., Ltd. is one of the leading manufacturers and suppliers of 37.5 kva pole mounted transformer in China. If you're going to wholesale durable 37.5 kva pole mounted transformer made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
This is a 37.5kva pole mounted transformer, the primary voltage and secondary voltage of the transformer are 13.8-0.12/0.24kV, it is a single-phase transformer, which is a type of power transformer that utilizes single-phase alternating current, meaning the transformer relies on a voltage cycle that operates in a unified time phase. Single phase pole mounted transformer is widely used in residential and light commercial applications. Some common uses include powering household appliances, lighting, and small office equipment. It is also suitable for powering nonindustrial businesses with voltage needs similar to those of households.

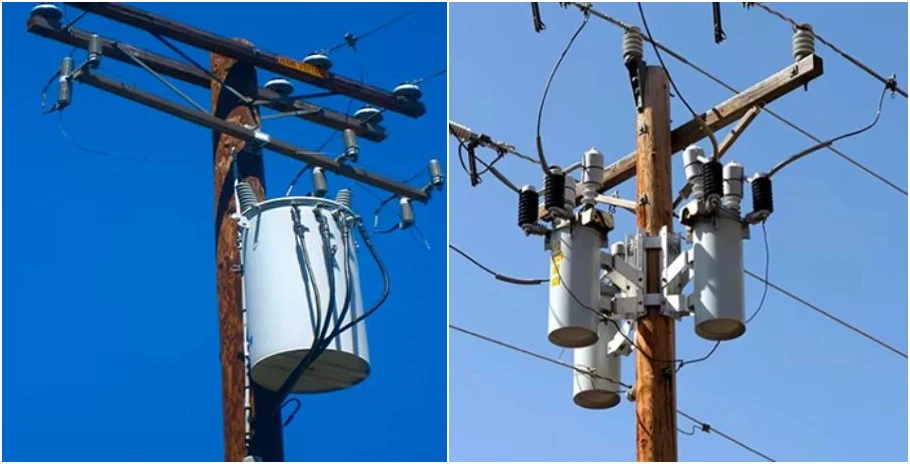

This 37.5kva pole mounted transformer can be used alone for the supply of a single phase load or as one of three units in a bank for the supply of a three phase load. The unit can be direct-mounted to a wooden or concrete pole, or cluster mounted on a pole for three phase use.

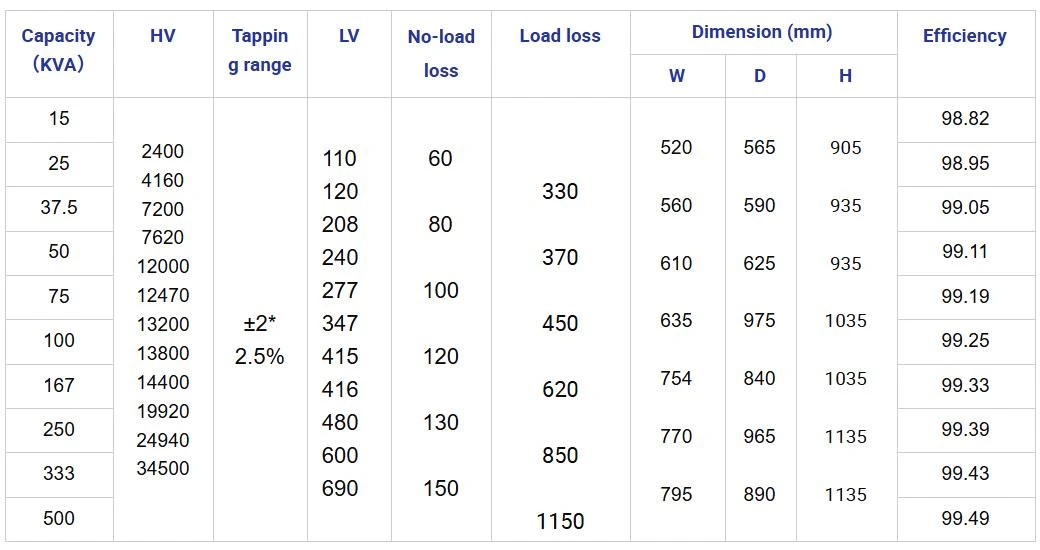

Technical Specifications
| Rated capacity | 15-500kva |
| Input Voltage | 10kV, 3kV, 6kV, 6.3kV, 6.6kV, 11kV, 10.5kV, 12.47kV, 35kV |
| Output Voltage | 220 V, 380 V, 400 V, 415V, 480V |
| Frequency | 50 Hz, 60 Hz |
| Winding Material | Copper, Aluminum |
| Phase | Single |
| Type | oil-immersed |
| Coil Number | 2 |
| Coil Structure | Round Coil |
Advantages
Single-phase pole-mounted transformers reduce line losses by over 99% at low-voltage line and improve energy efficiency by being installed close to the load. Their compact, lightweight design enables easy transportation and pole-mounted installation without occupying ground space. With a fully enclosed structure, strong overload capacity and low investment cost, they are reliable, low-maintenance and ideal for rural and suburban large-scale deployments.
Customization Options
As a direct manufacturer, we provide fully customized transformer solutions to meet your project requirements:
- Custom voltage ratios (HV/LV)
- Special core and winding designs
- Copper or aluminum windings
- Compact or lightweight designs
- Special cooling systems
Our engineering team will deliver a tailored design within 72 hours based on your specifications.
How to Get a Transformer Quotation
Please provide the following parameters so we can prepare an accurate quotation for you. You may attach your SLD or specification sheet if available.
Quantity,Destination & Application scenario
Power Rating (Rated Capacity)
You can provide either load capacity in KW or the voltage transformer power in KVA.
Input & Output Voltage
Input voltage is the mains supply voltage, and output voltage is the voltage that load needs.
Frequency: 50Hz or 60Hz
Phases: Three or single
Insulation Class
Both F and H insulation class are available for choice, the default insulation level is F.
Vector Group
Please specify Dyn11 or Yyn0 vector group, Delta or Wye (star) connection.
Winding Material
Both Aluminum and Copper are available for choice.
We're a professional distribution transformer manufacturer and supplier in China, specialized in providing high quality customized products with competitive price. We warmly welcome you to wholesale transformers made in China here from our factory.
