Zhejiang Jiangshan Hengli Electrical Co., Ltd. is one of the leading manufacturers and suppliers of class f epoxy resin cast dry type transformer in China. If you're going to wholesale durable class f epoxy resin cast dry type transformer made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.

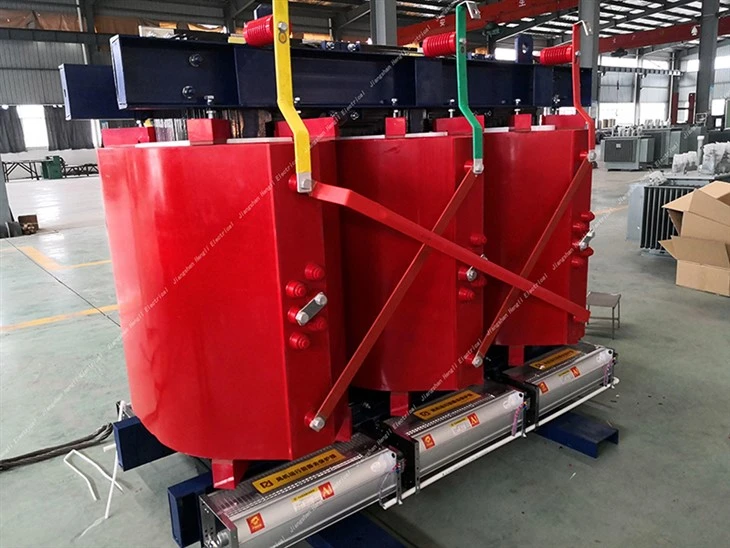

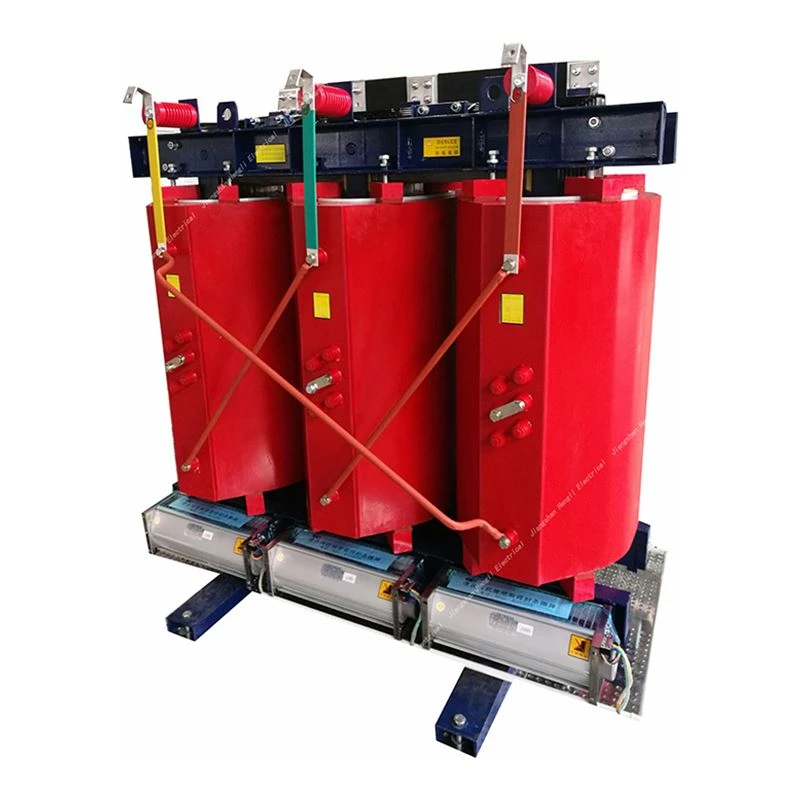

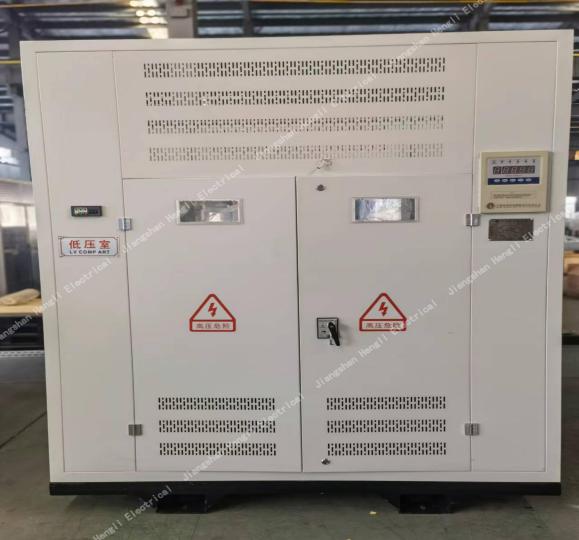

This 800 kVA Class F Epoxy Resin Cast Dry Type Transformer comes with rated capacity 800kVA, primary high voltage 6.6kV equipped with ±2×2.5% off-circuit no-load tapping (NLTC) for flexible voltage adjustment to cope with unstable grid voltage conditions. The secondary output voltage is 0.55kV, with Delta (HV side) and Star (LV side) structural connection to suppress harmonic current, balance three-phase load and optimize power supply quality.
Adopting advanced vacuum epoxy resin casting technology, this dry type transformer features Class F high-temperature insulation, dual AN/AF cooling system, custom voltage tapping and reliable Delta-Star winding connection, delivering outstanding stability, fire resistance, low operation loss and long service lifespan.
General Technical Parameter Table
|
Item |
Technical Specification |
|
Rated Capacity |
800 kVA |
|
Phase Number |
3 Phase |
|
Primary Rated Voltage |
6.6 kV |
|
Secondary Rated Voltage |
0.55 kV |
|
Tapping Mode |
NLTC (Off-Circuit No Load Tap Changer) |
|
Tapping Range |
±2×2.5% |
|
Cooling Method |
AN (Natural Air) / AF (Forced Air) |
|
Winding Connection |
Delta / Star (D/Y) |
|
Insulation Class |
Class F (155℃) |
|
Frequency |
50Hz / 60Hz Optional |
|
No-load Loss |
Custom high efficiency standard |
|
Load Loss (75℃) |
Custom optimized data |
|
No-load Current |
≤1.2% |
|
Short Circuit Impedance |
6% / 8% Optional |
|
Noise Level (AN) |
≤58dB |
|
Working Ambient Temperature |
-25℃ ~ +40℃ |
|
Altitude Adaptation |
≤1000m (Higher altitude customized) |
|
Executive Standard |
IEC 60076-11, GB/T 10228, CE Certification |
|
Protection Grade |
IP00 / IP20 / IP30 Optional |
|
Installation |
Indoor fixed installation |
|
Weight & Dimension |
Customized according to drawing |
Wide Application Scenarios
● Industrial manufacturing plants, factory power distribution rooms
● Commercial buildings, shopping centers, office buildings, hotels
● Data centers, hospitals, school public facilities
● Solar energy, wind energy, energy storage power station projects
● Underground engineering, subway, tunnel enclosed spaces
● High humidity, high altitude, dust and corrosive special environments
Core Design & Key Features

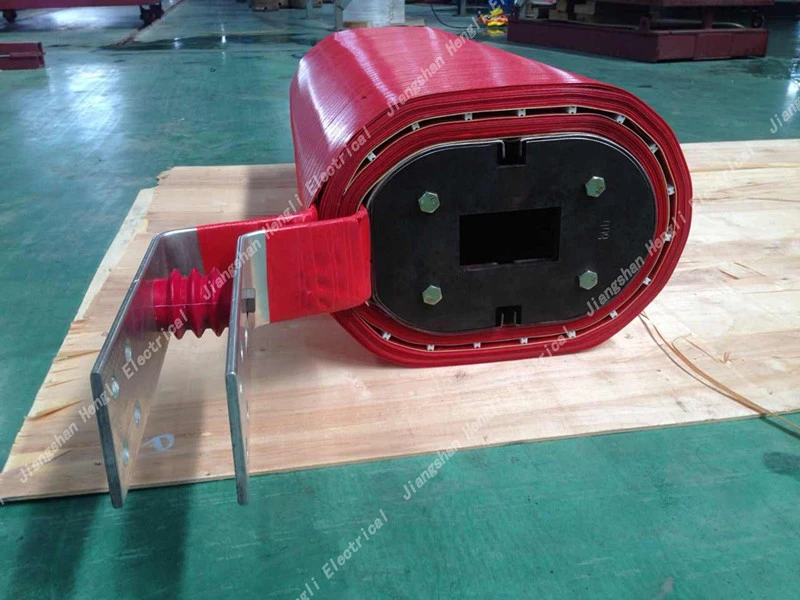

Class F Epoxy Resin Cast Insulation
High-purity epoxy resin vacuum encapsulated windings, Class F insulation with 155℃ maximum temperature rise rating. Excellent dielectric strength, anti-aging, crack resistance, waterproof and anti-corrosion, stable performance under harsh temperature and humid working conditions. Self-extinguishing flame retardant grade meets UL94 V-0 standard, zero fire risk for indoor use.

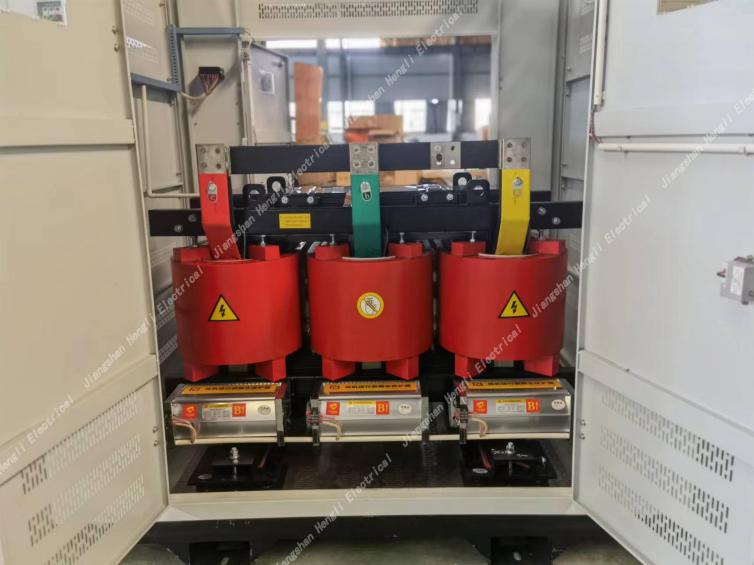

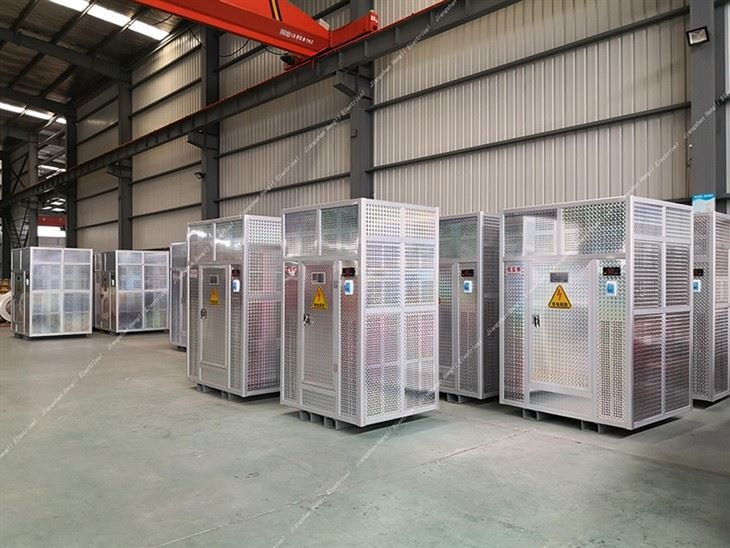

AN/AF Dual Cooling System
AN (Natural Air Cooling) for standard rated 800kVA regular operation with energy-saving and low noise performance; AF (Forced Air Cooling) with auxiliary cooling fans enables 25%-40% overload capacity for peak load demand. Intelligent fan automatic start-stop system reduces energy consumption and extends transformer service life.
Flexible NLTC Voltage Regulation
Primary 6.6kV high voltage side designed with ±2×2.5% off-circuit tapping range, 5 tapping positions in total. Workers can adjust voltage ratio offline to adapt to grid voltage fluctuation, guarantee stable 0.55kV secondary output voltage and reduce operation loss under unbalanced grid conditions.
Delta-Star Winding Connection
High voltage side Delta connection restrains third harmonic current, lowers magnetizing loss and enhances short-circuit resistance; low voltage side Star connection supports balanced three-phase output, adapts to unbalanced load operation and improves overall power supply stability.
Smart Temperature Protection System
Built-in three-phase winding temperature sensor and intelligent temperature controller, realizing real-time temperature monitoring, over-temperature alarm, over-temperature trip and fan automatic control. Multiple safety protection functions avoid overheating damage and ensure safe 24/7 continuous operation.
Compact Structure & Easy Installation
Integrated rigid structure, shock resistance and low vibration. No oil pit, fire barrier or complicated oil pipeline installation required, saving installation space and construction cost. Simple daily inspection, zero regular oil replacement, greatly lowering lifecycle maintenance expense.
Testing & Quality Assurance
Each single phase pole mounted transformer undergoes strict testing procedures before delivery:
Routine tests (Factory Test)of transformer
1,Winding Resistance Measurement
2,Ratio Test (Voltage Ratio Measurement)
3,Transformer vector group test
4,Short-Circuit Impedance & Load Loss Test
5,No-Load Loss & No-Load Current Test
6,Insulation Resistance Test
7,Tests on-load tap-changer.
Certificates
