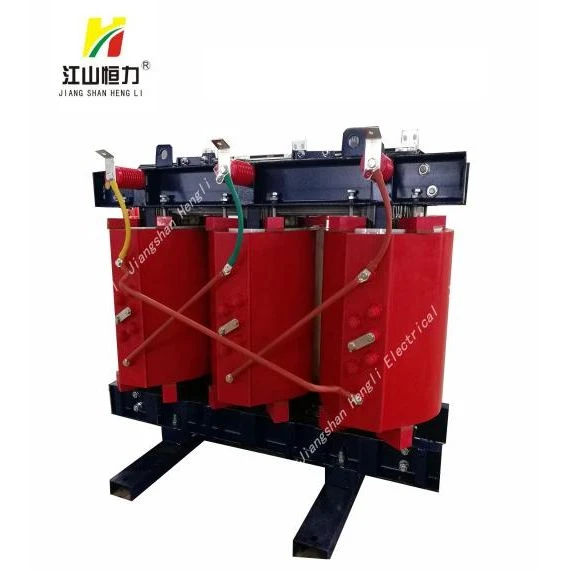

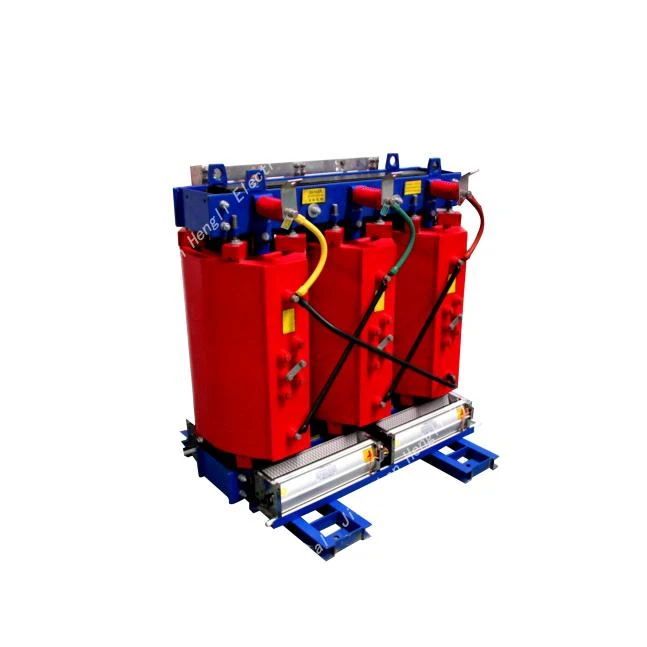

This is a 800kVA dry type power transformer. It is a three-phase transformer with F-class insulation (155℃), designed for indoor power distribution scenarios that require high safety, energy saving and reliability.The rated power of the step down dry type transformer is 800kVA with AN/AF cooling, the primary voltage is 10kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.4kV , they formed a vector group of Dyn11.

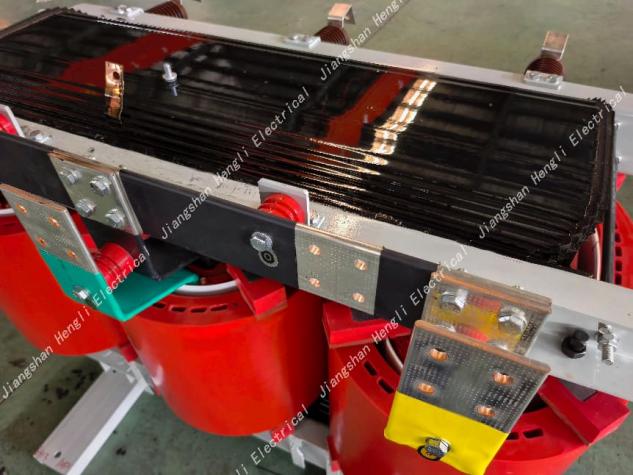

Dry type power transformer use cast resin as the insulating medium, which provides excellent insulation and environmental protection. Combined with internal foil winding design, this construction greatly enhances dielectric strength and short-circuit resistance, guaranteeing dependable long-term operation for general distribution and special-use scenarios. Dry type power transformers support copper or aluminum windings with Class F or Class H insulation options; various enclosure grades are available to suit indoor and outdoor installation requirements. They are applicable to power transmission and distribution system,especially to heavy load centers and places with special fire protection requirements.

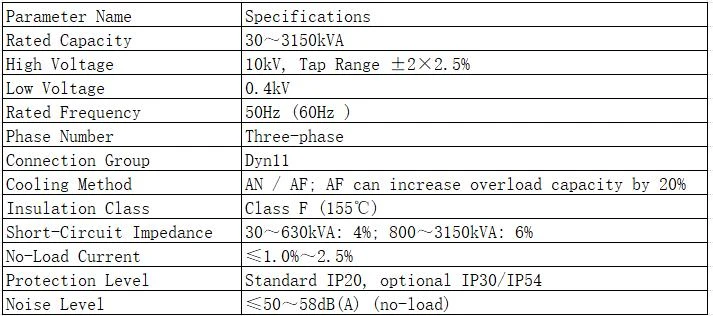

Technical Specifications
Scope of Supply
Our dry type power transformers fully compliant with GB 20052 and IEC 60076 standards.
- Power Range: 30～3150kVA
- Primary Voltage Ratings: 6-13.2/20-24/35-38.5kV or others
- Secondary Voltage Ratings: 0.2-0.6kV or other
- H.V. TAP RANGE: ±2×2.5%
- CONNECTION TYPE: Dyn11 Yyn0
Core Strengths of Dry Type Power Transformer
Fire & Safety Performance
F1 fire-resistant, self-extinguishing design eliminates fire risks to protect personnel and assets
Strong short-circuit tolerance and great overload capacity; outstanding seismic resistance
Wide Environmental Adaptability
E2 environmental grade & C2 climatic grade, stable in humid and polluted sites
Custom enclosures IP00–IP56, multiple cooling modes: AN, AF, ANAF, AFWF
Eco & Low Operating Cost
Fully maintenance-free; over 90% recyclable materials for eco-friendly operation, zero pollution
Lower installation expense, simple mounting, reduces economic losses caused by power outages
Insulation Classifications for Dry Type Power Transformer
Dry type power transformers come with four standard insulation grades, each engineered to deliver sufficient dielectric strength while enduring distinct maximum thermal thresholds. The categorized temperature ratings are listed as below:
- Class R: 220°C
- Class H: 180°C
- Class F: 155°C
- Class B: 130°C
