Zhejiang Jiangshan Hengli Electrical Co., Ltd. is one of the leading manufacturers and suppliers of cast coil dry type power transformer in China. If you're going to wholesale durable cast coil dry type power transformer made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.

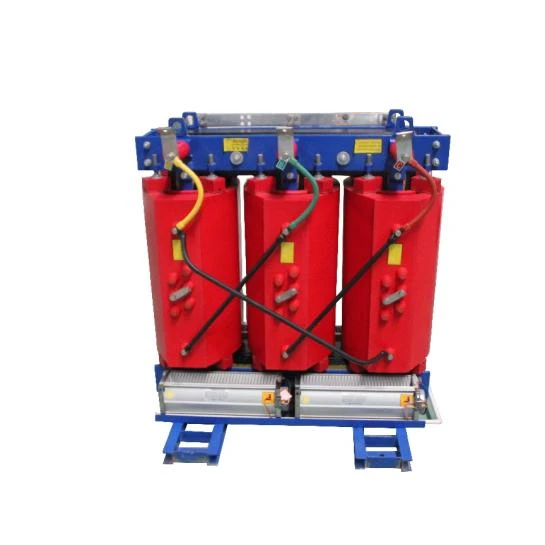

A cast coil dry type power transformer (also called cast resin dry transformer) is an oil-free power distribution device that uses vacuum-cast epoxy resin to fully encapsulate its high-voltage and low-voltage windings, relying solely on air for cooling instead of insulating oil.
During production, wound coils are sealed in molds under vacuum to eliminate air voids, forming a solid, rigid insulation block. Based on electromagnetic induction, it converts voltage and transfers power without flammable liquid, unlike oil-immersed transformers.
The cast coil dry type power transformer serves as an eco-friendly alternative to traditional oil-immersed distribution transformers. Manufactured with premium epoxy resin, precise casting craft and strict testing, it delivers stable, safe power conversion with low partial discharge (≤5Pc) and strong short-circuit withstand capacity.
Core Advantages
Safe insulation
Certified F1 self-extinguishing fire resistance, E2 environmental & C2 climate class, adaptable to -25℃ low-temperature working conditions.
Air cooling system
Multiple cooling modes (AN, AF, ANAF, AFWF) and IP00–IP56 protection enclosures; stainless steel/aluminum shells support indoor (IP20) and outdoor (IP23) installation.
Smart temperature control
Built-in PT100 sensors track winding hot-spot temperature, with auto fan startup, high-temp alarm and overheat trip functions, compatible with RS485 Modbus communication.
Nearly maintenance-free
Over 90% recyclable raw materials for green power projects.
Low temperature rise range from 90K to 125K with excellent impulse voltage resistance.
Technical Specifications
Shell protection device
The shell of the cast coil dry type power transformer is made of stainless steel or aluminum alloy.Protection grade can reach IP20 and IP23.IP20 housing can prevent solid foreign objects of diameter more than 12mm enter into and protect the transformer safely.IP23 housing can prevent the vertical drop of less than 60°of flow,suits for outdoor operation.
Customization & Compliance
We offer full customization on capacity, voltage ratio, cabinet color, structure and extra functions.All products follow international industry standards to meet strict safety and quality benchmarks, ideal for offices, hospitals, data centers and indoor industrial power supply.
