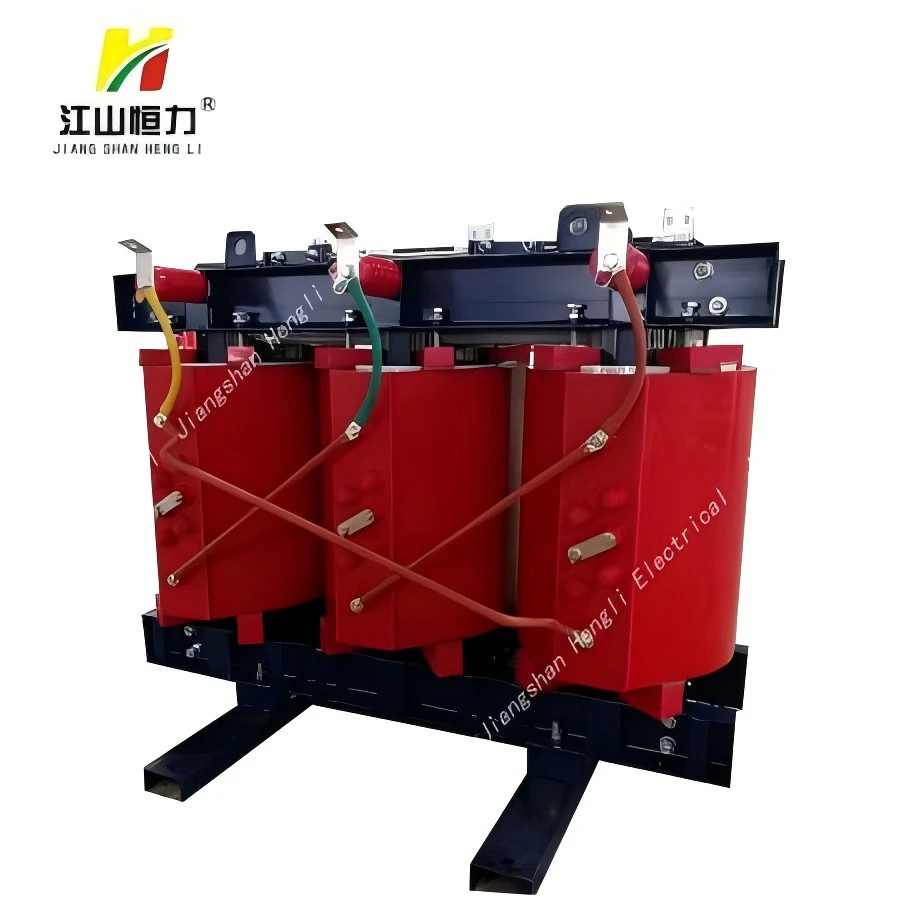

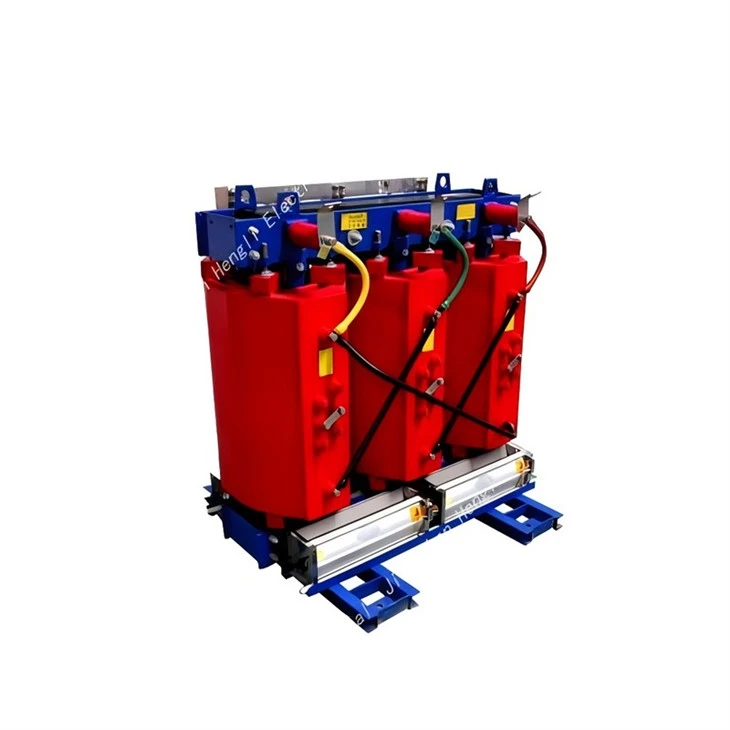

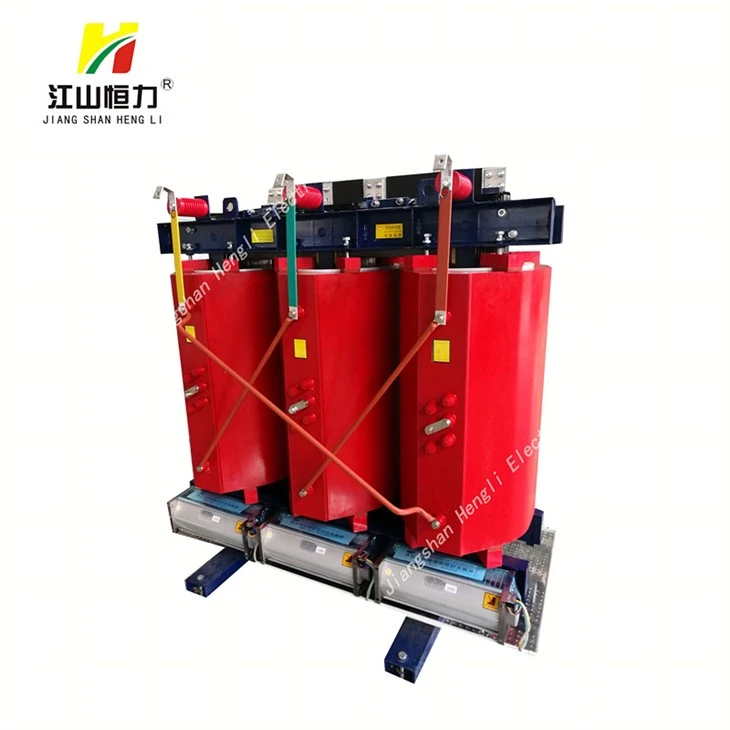

A dry cell transformer is commonly used in some markets to describe an oil-free dry-type transformer that uses solid insulation instead of liquid insulating oil. Zhejiang Hengli Electrical manufactures cast resin dry-type transformers for projects where oil-free construction, fire-risk control and reduced maintenance are important considerations.
Our dry-type transformers use epoxy resin insulation and air cooling, eliminating the need for mineral oil as the insulating and cooling medium. They can be applied in indoor substations, data centers, commercial buildings, industrial facilities and renewable energy projects where the transformer may need to be installed close to the electrical load.
Transformer capacity, voltage class, cooling arrangement and enclosure protection are selected according to the electrical system and installation conditions of each project.
Main Parameters
|
Item |
Typical / Available Configuration |
|
Rated Capacity |
Project-dependent; customized according to requirements |
|
Voltage Class |
Commonly 10kV, 11kV,33kV, 35kV; other ratings subject to design |
|
Insulation Class |
F / H, depending on design |
|
Cooling |
AN / AF, according to load requirements |
|
Vector Group |
Dyn11, Yyn0 and other configurations as required |
|
Enclosure |
IP20–IP54, subject to installation environment |
|
Climatic / Environmental Class |
C2 / E2 / F1 available for applicable designs |
|
Frequency |
50 / 60 Hz |
The final rated capacity, HV/LV voltage, impedance, vector group, cooling method and protection level are confirmed during technical design rather than being limited to a fixed standard configuration.
Construction and Insulation System

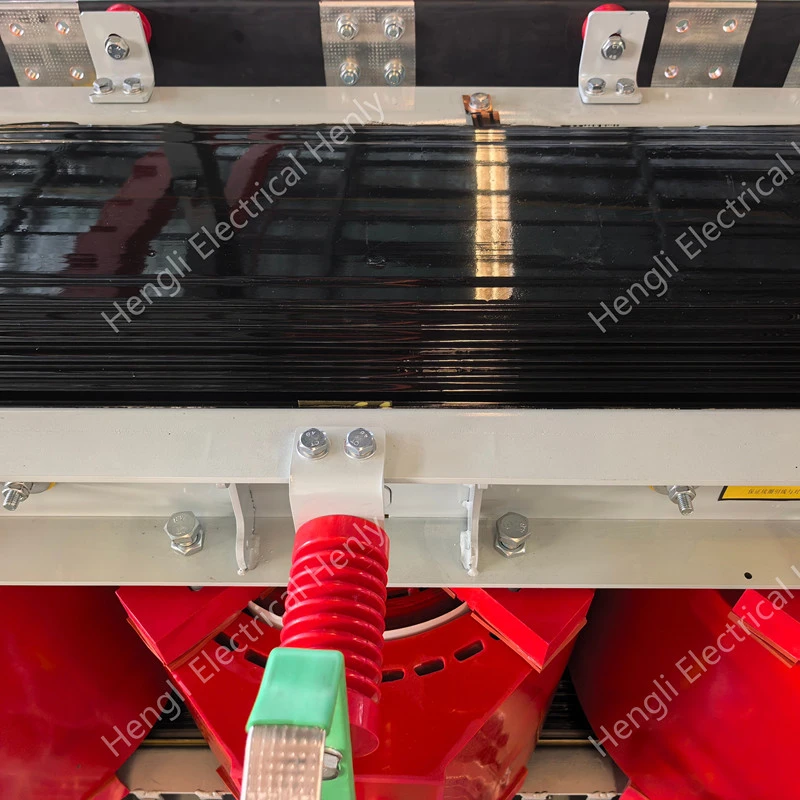

The transformer core is manufactured from grain-oriented silicon steel with an optimized laminated structure to control no-load losses and operating noise.
For cast resin designs, the high-voltage windings are vacuum cast with epoxy resin and suitable mineral filler. This creates a solid insulation system with good mechanical and dielectric properties while avoiding the use of transformer oil.
The low-voltage winding can be designed with a foil-wound structure where appropriate to improve current distribution and short-circuit withstand capability. Temperature sensors can be embedded in the windings and connected to a temperature controller, alarm system and forced-air cooling system when required.

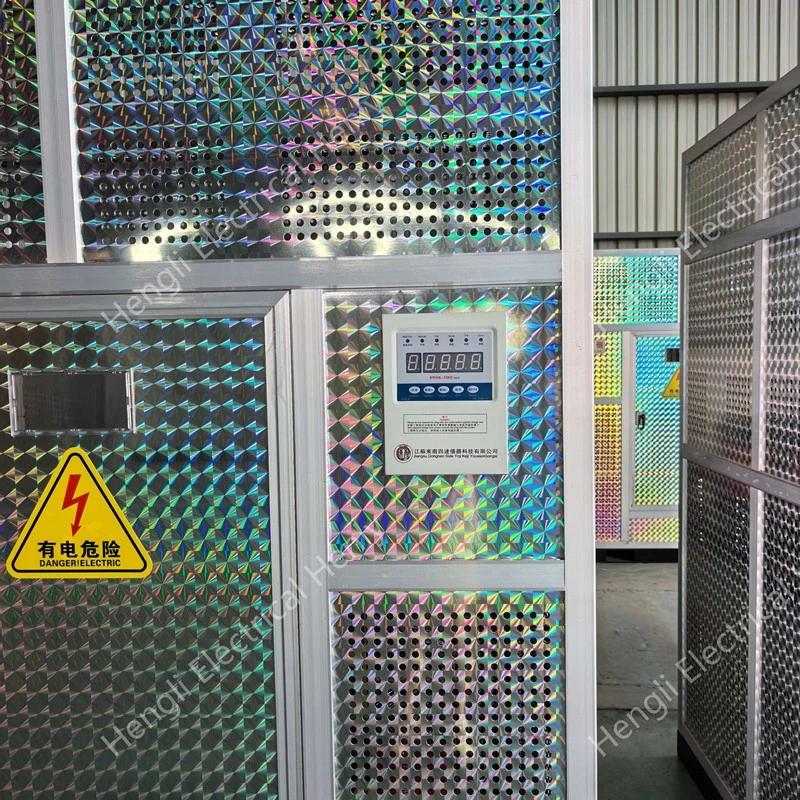

For locations requiring additional protection against dust, moisture or accidental contact, the transformer can be supplied with a metal enclosure and the required IP protection level.
Key Advantages of Dry Cell Transformers
Oil-Free Construction
The absence of mineral oil eliminates oil leakage and reduces maintenance associated with liquid insulation. There is no routine requirement for oil sampling, filtration or replacement, making the design suitable for many indoor electrical installations.
Suitable for Indoor Power Distribution
A dry-type transformer can be installed close to the load center, depending on the project layout. This can be useful in commercial buildings, data centers, hospitals and underground electrical rooms where space, fire-risk control and equipment accessibility are important considerations.
Adaptable to Different Environments
The transformer can be configured according to the installation environment. Where the project requires enhanced resistance to humidity, environmental exposure or fire-related conditions, suitable enclosure and environmental classifications can be considered during the design stage.
Simplified Routine Maintenance
Maintenance mainly involves checking electrical connections, ventilation, insulation condition and temperature monitoring rather than managing transformer oil. This can simplify routine inspection for industrial and commercial users.
Factory Supply and Customization
Zhejiang Hengli Electrical provides project-based dry-type transformer solutions rather than limiting customers to a fixed product specification. Depending on the application, we can discuss customization of rated capacity, HV/LV voltage, impedance, cooling method, enclosure protection, environmental requirements and other electrical parameters.
Before production, our engineering team reviews the customer's technical specification to confirm whether the requested voltage, capacity and environmental classification are suitable for the proposed transformer design.
