Oil Type Power Transformer

Zhejiang Jiangshan Hengli Electrical Co., Ltd. is one of the leading manufacturers and suppliers of oil type power transformer in China. If you're going to wholesale durable oil type power transformer made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.

Zhejiang Hengli Electrical manufactures oil type power transformers for medium- and high-voltage power distribution and conversion. As a direct transformer manufacturer in China, we provide both standard configurations and project-specific designs based on rated capacity, voltage level, installation environment and load requirements.

Also known as oil immersed power transformers or oil filled transformers, these units use insulating oil for electrical insulation and heat dissipation. Compared with dry type designs, oil immersed construction provides efficient thermal performance and good overload capability, making it suitable for outdoor substations, utility distribution networks, renewable energy projects and industrial power systems.

Oil Type Distribution Power Transformer
Rated Power: Up to 5000kVA
Primary Voltage: Up to 35kV

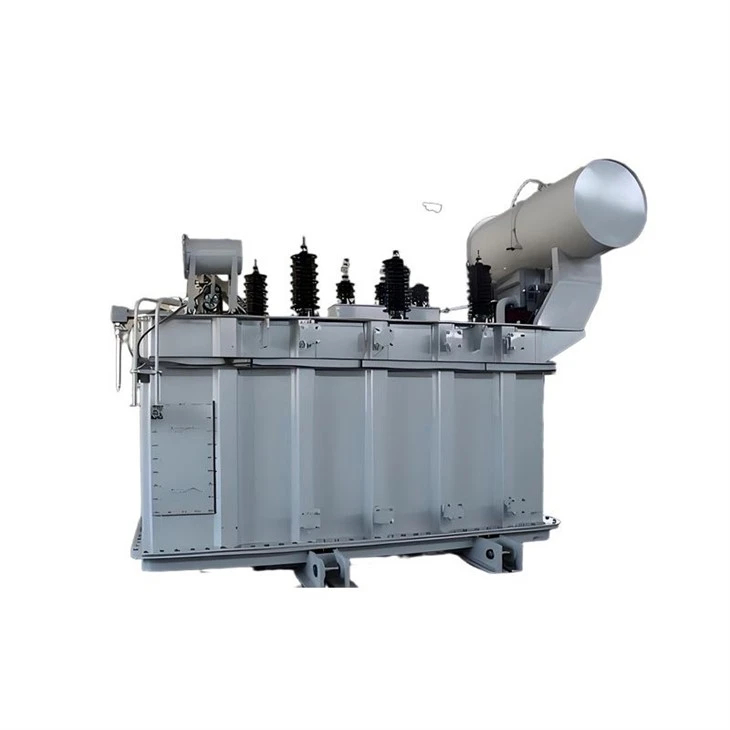

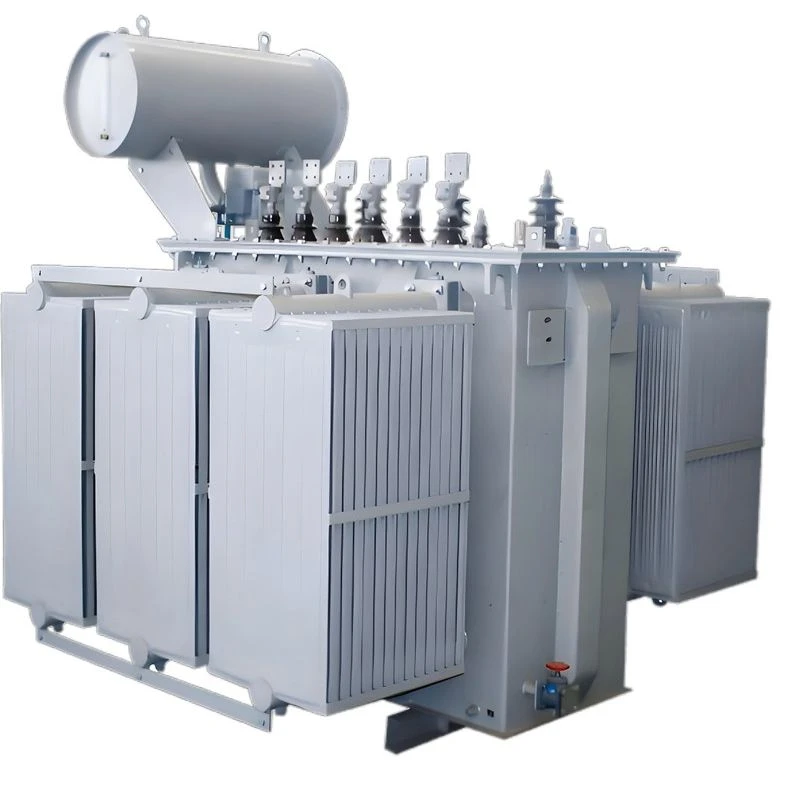

Oil Type Power Transformer
Rated Power: Up to 200mVA
Primary Voltage: Up to 230kV

Standard accessories (bushings, conservator optional, thermometer, etc.)
Test reports and technical documentation
Customization Options
Actual specifications can be adjusted according to the project voltage, load capacity, grid requirements and applicable local standards.

We provide tailored transformer solutions based on your project:

• Voltage ratio customization (HV/LV)
• Copper or aluminum winding options
• Special loss requirements
• Tap changer (off-load / on-load)
• Anti-corrosion or special environmental design
• Compact or lightweight structure

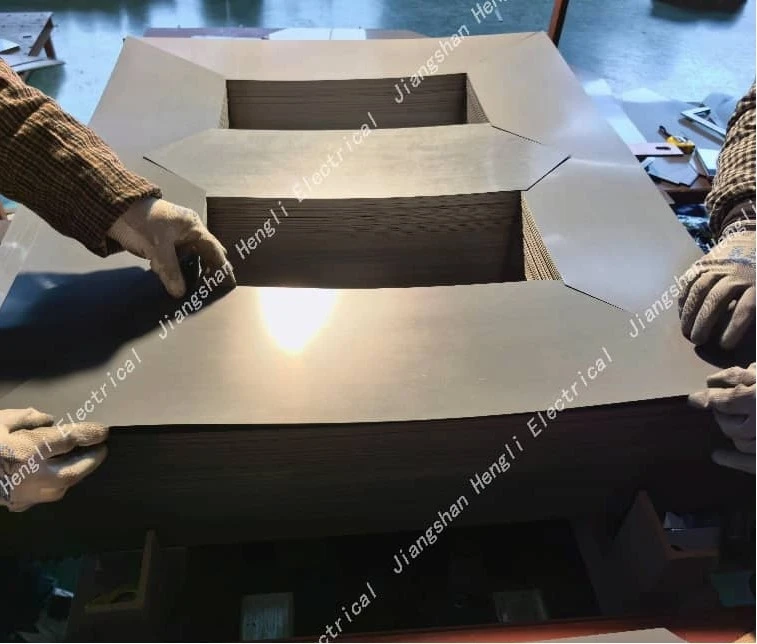

The transformer core is manufactured from high-permeability cold-rolled grain-oriented silicon steel (CRGO). An optimized laminated core structure helps reduce no-load losses, no-load current and operating noise.

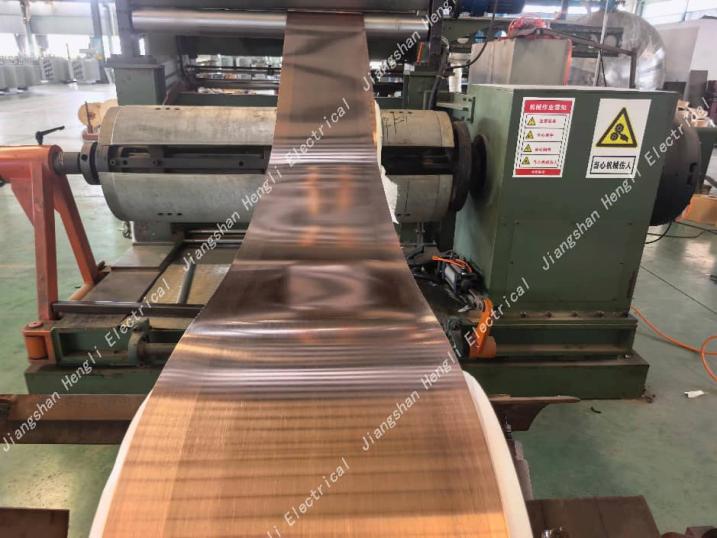

Copper windings provide high electrical conductivity and reliable thermal performance. The windings are insulated with suitable electrical insulation materials and supported by a reinforced clamping structure to improve mechanical strength and short-circuit withstand capability.

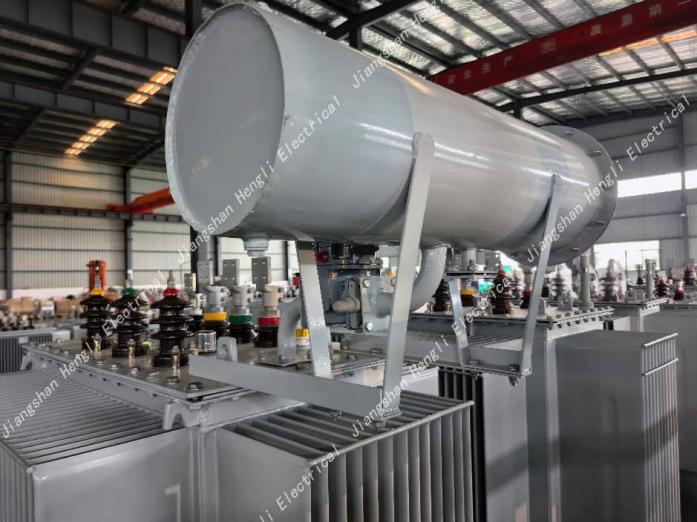

Depending on the transformer design, the tank can use a corrugated structure or other sealed construction to reduce direct contact between insulating oil and external air. This helps limit moisture ingress and slow oil ageing during long-term operation.

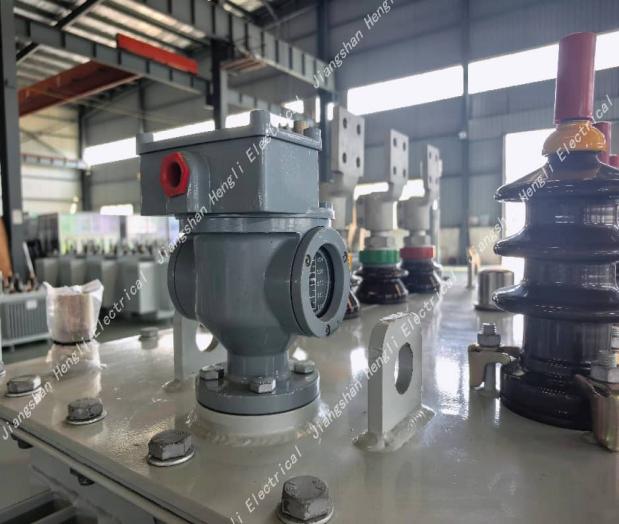

Typical monitoring and protection accessories may include an oil level indicator, pressure relief device, temperature indicator and Buchholz relay, depending on the transformer capacity and tank configuration.

Oil type power transformers are commonly used in:

• Utility distribution substations
• Solar power plants and renewable energy projects
• Wind power systems
• Manufacturing and industrial facilities
• Mining and heavy-duty electrical installations
• Ports and infrastructure projects
• Municipal distribution networks
• Commercial buildings and large complexes
• Industrial and commercial power distribution systems

We have delivered these customized solutions for real overseas projects.

For a Southeast Asian solar farm EPC customer, we supplied 4 units of 1000kVA oil type transformers with enhanced anti-salt spray coating. The site sits near the coastline with high humidity and salt mist. After 3 years of continuous running, the units keep low no-load loss without tank rust or oil leakage.

For an African mining project, we built 6 sets of 1600kVA transformers with reinforced mechanical clamping. The site faces frequent grid fluctuation and bumpy overland transport. Our design improved short-circuit resistance, helping the client cut unexpected power downtime by more than 20%.

Before delivery, each transformer is subject to applicable routine tests to verify electrical and mechanical performance. Typical tests may include:

• Winding resistance test
• Voltage ratio and vector group test
• No-load loss and no-load current test
• Impedance voltage and load loss test
• Insulation resistance test
• Dielectric tests
• Oil leakage and pressure tests where applicable



For large EPC or utility projects, third-party inspection and witnessed factory testing can also be arranged according to the approved inspection and test plan.
