Zhejiang Jiangshan Hengli Electrical Co., Ltd. is one of the leading manufacturers and suppliers of oil immersed rectifier transformer in China. If you're going to wholesale durable oil immersed rectifier transformer made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.

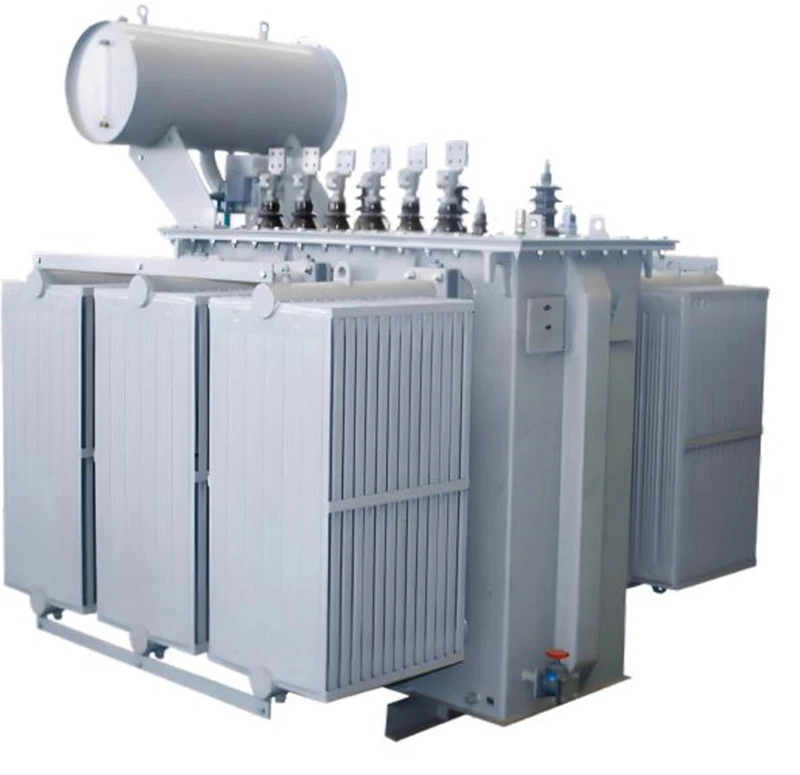

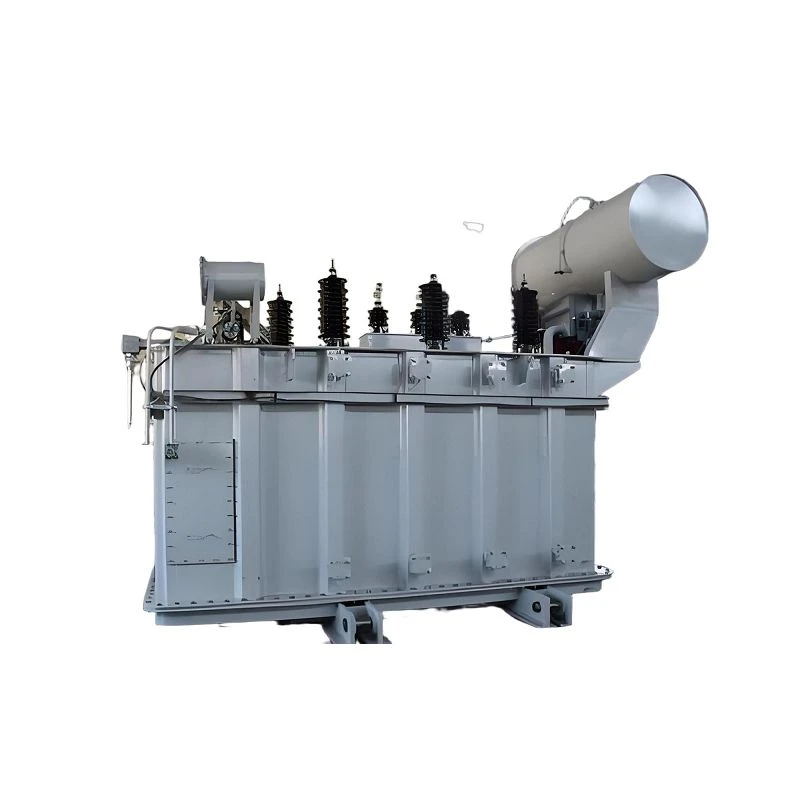

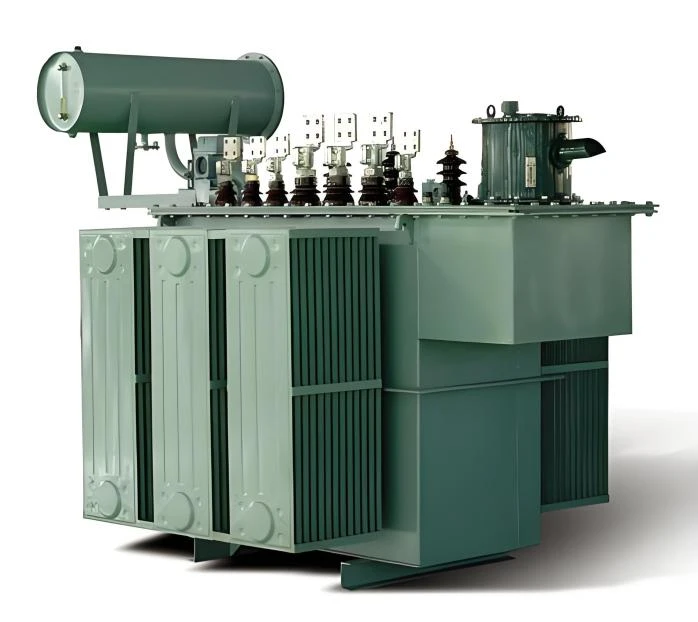

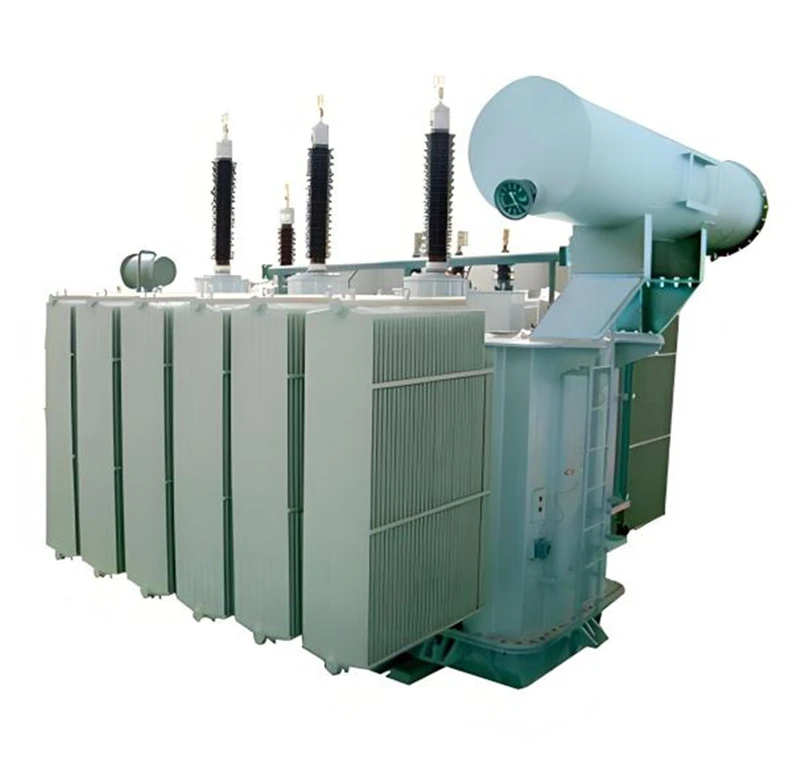

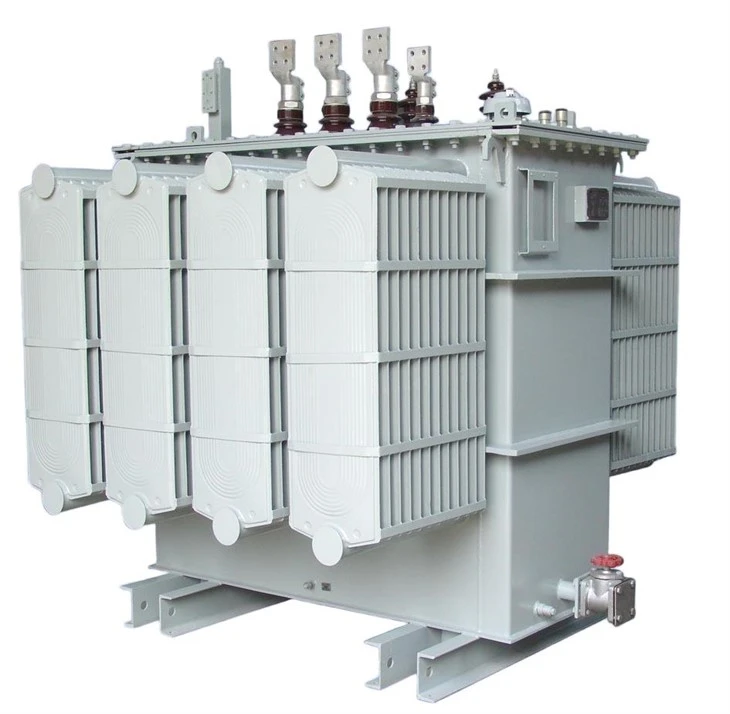

An oil-immersed rectifier transformer is a special-purpose industrial transformer designed to match rectifier units. It converts grid alternating current into regulated AC voltage for diode or thyristor rectifiers, which then produce direct current for heavy industrial loads. Immersed in insulating mineral oil, it achieves reliable cooling and insulation. It is specially engineered to cope with harmonics, DC bias and non-sinusoidal currents generated during rectification, which standard distribution transformers cannot handle safely. Oil immersed rectifier transformer is mainly used in electrochemical industry( an industry using rectifier transformer mostly),traction with direct current power supply, transmission with direct current power supply and other fields.
Product parameters
Core Features
1.Support multi-pulse configurations (6-pulse, 12-pulse, 24-pulse) to reduce grid harmonic pollution
2.Reinforced winding construction and optimized magnetic circuit to avoid core saturation
Built-in higher impedance to limit short-circuit current
3.Oil cooling ensures stable performance under continuous heavy-duty operation
The oil-immersed rectifier transformer ensures stable electrical performance with a safety factor ≥1.67. Its robust windings offer high dynamic stability, with impedance 30% higher than ordinary power transformers to safeguard rectifier parts. Optimized thermal design keeps temperature rise below standard limits. Copper coils support reliable operation under rated loads and 110% overvoltage, with strong overload resistance. It features low no-load current, excellent energy efficiency and noise below 65dB. The streamlined structure adopts leak-proof oil tank technology to avoid oil leakage.
Our Services
Pre-Sales Support
Professional model selection by experienced engineers
24/7 technical consultation (email, phone, online)
Fast customization and design solutions
After-Sales Service
1-year warranty (extended options available)
Dedicated customer support team
Installation and maintenance guidance
Rapid response for technical issues
Why Choose a Chinese Transformer Manufacturer as Your Partner?
As a global core production base for transformers, China brings you multiple notable strengths:
- Mature supply chains for raw materials and components
- Cost-effective pricing versus suppliers from other markets
- Sophisticated production technologies and reliable product quality
Hengli Electrical, based in Jiangshan, Zhejiang, integrates the strengths of China's manufacturing with decades of experience in power transformer industry. We deliver tailored transformer solutions that meet diverse market requirements across the globe.
Hot Tags: oil immersed rectifier transformer, China oil immersed rectifier transformer manufacturers, suppliers, factory
